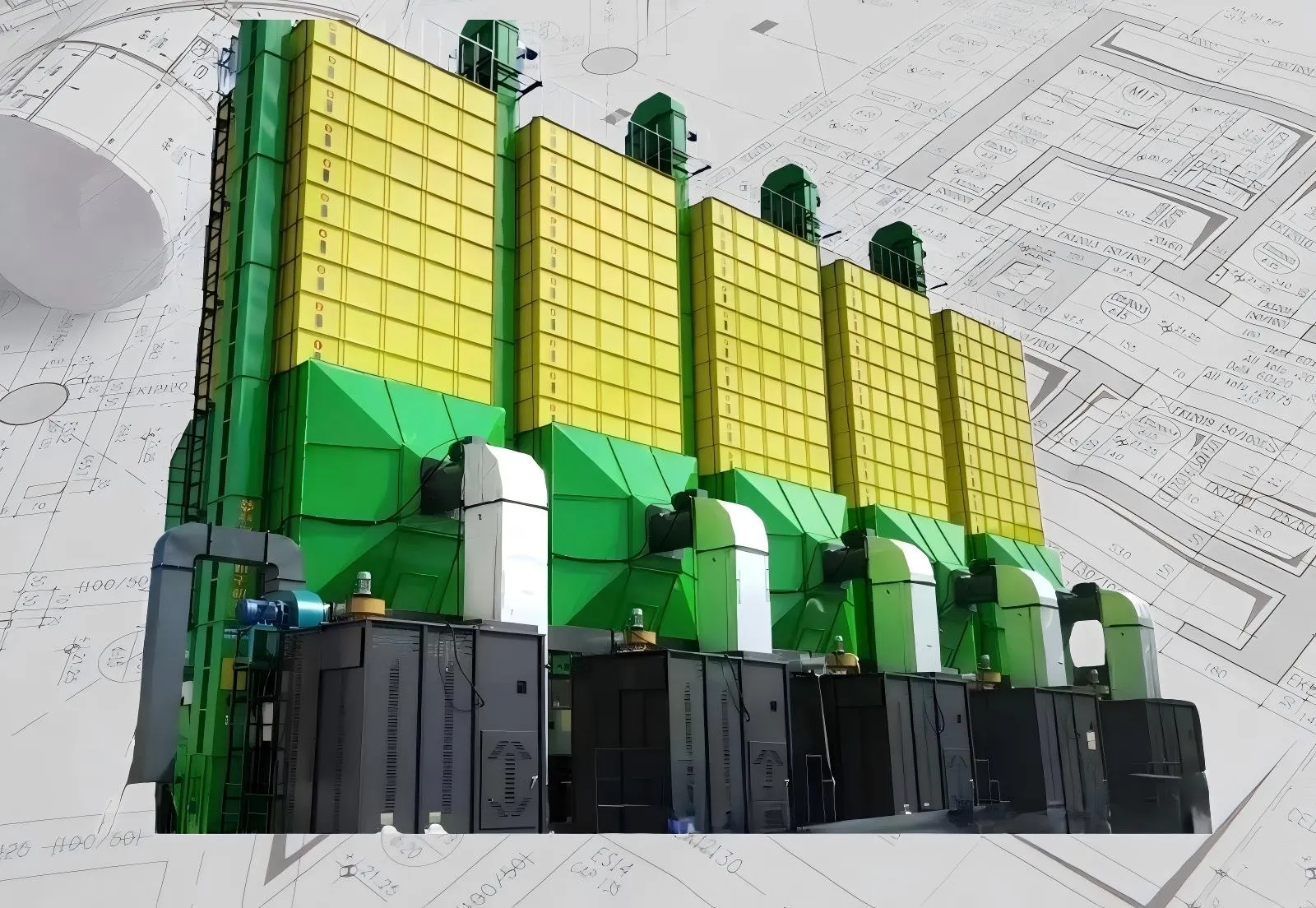

Our grain dryers adopt advanced mixed-flow drying technology. After drying, grain quality remains well, delivering 5–10% higher rice yield compared with cross-flow dryers under identical conditions.
We have developed assembled dry/wet granaries equipped with grain temperature detection and intelligent risk-control systems. They protect grain quality and avoid grain over-heating or moisture re-absorption.
Cylinder primary cleaning screens and intelligent cleaning screens effectively remove impurities such as straws from raw grain.
Standardized centralized grain intake & discharge together with distributed dust-removal systems reduce labor intensity and ensure environmental-friendly operation.
Centralized control system for intelligent drying & storage equipment, plus grain monitoring system. Dryers, silos, grain loading/unloading machines can all be managed in the control room. Real-time status and grain-quality data are displayed locally, realizing centralized management for drying-storage centers.
Grain-flow detection system enables real-time statistics of rice throughput. It supports connection with provincial agricultural-machinery subsidy platforms.
Mobile remote-monitoring system: each dryer can be fitted with Beidou monitoring terminals, allowing operators to track equipment status via mobile phones.
| No. | Equipment Name | Main parameter and feature | KW |
|---|---|---|---|
| 1 | Intelligent grain dryer | 10T, 20T, 30T mixed-flow series grain dryer can be choice | — |
| 2 | Intelligent air screen integrated cleaning machine | 1. Screened rice, rape, corn; 2. Screen surface automatic cleaning, stainless steel screen surface, variable frequency speed feeding, with special control cabinet and fan 5.5Kw or more; 3. Processing capacity 40–50 tons/hour |
9.75–10 |
| 3 | Slow elevator DT5033 | 1. 50 tons/hour, height optional; 2. With Guomao reducer, three-dimensional PVC belt |
5.5–7.5 |
| 4 | Fabricated dry/wet granary | 1. 50 tons, 80 tons, 100 tons according to demands; size 5×5×7 (body); 2. Steel warehouse, including warehouse ladder inside & outside; equipped with 15.5KW fan |
5.5–7.5 |
| 5 | Grain unloading trolley conveyor | 1. 50 tons/hour, length according to demand; 2. Assembled structure, equipped with Guomao reducer (matching car electronic control switch) |
5.5–7.5 |
| 6 | Scraper | 1. 50 tons/hour, length according to demand; 2. Assembled structure, equipped with Guomao reducer |
5.5–7.5 |
| 7 | Intelligent control system | 1. Intelligent drying-storage complete equipment centralized control system and storage grain monitoring system; 2. Grain-flow detection system can be connected with the platform; 3. Mobile phone remote monitoring system — can monitor the equipment through the mobile phone |
— |
| 8 | Hot stove | The standard is the biomass hot blast stove independently developed by our company, including centralized feeding, centralized smoke exhaust and other systems; also optional suspension furnace, steam furnace, etc. | — |
