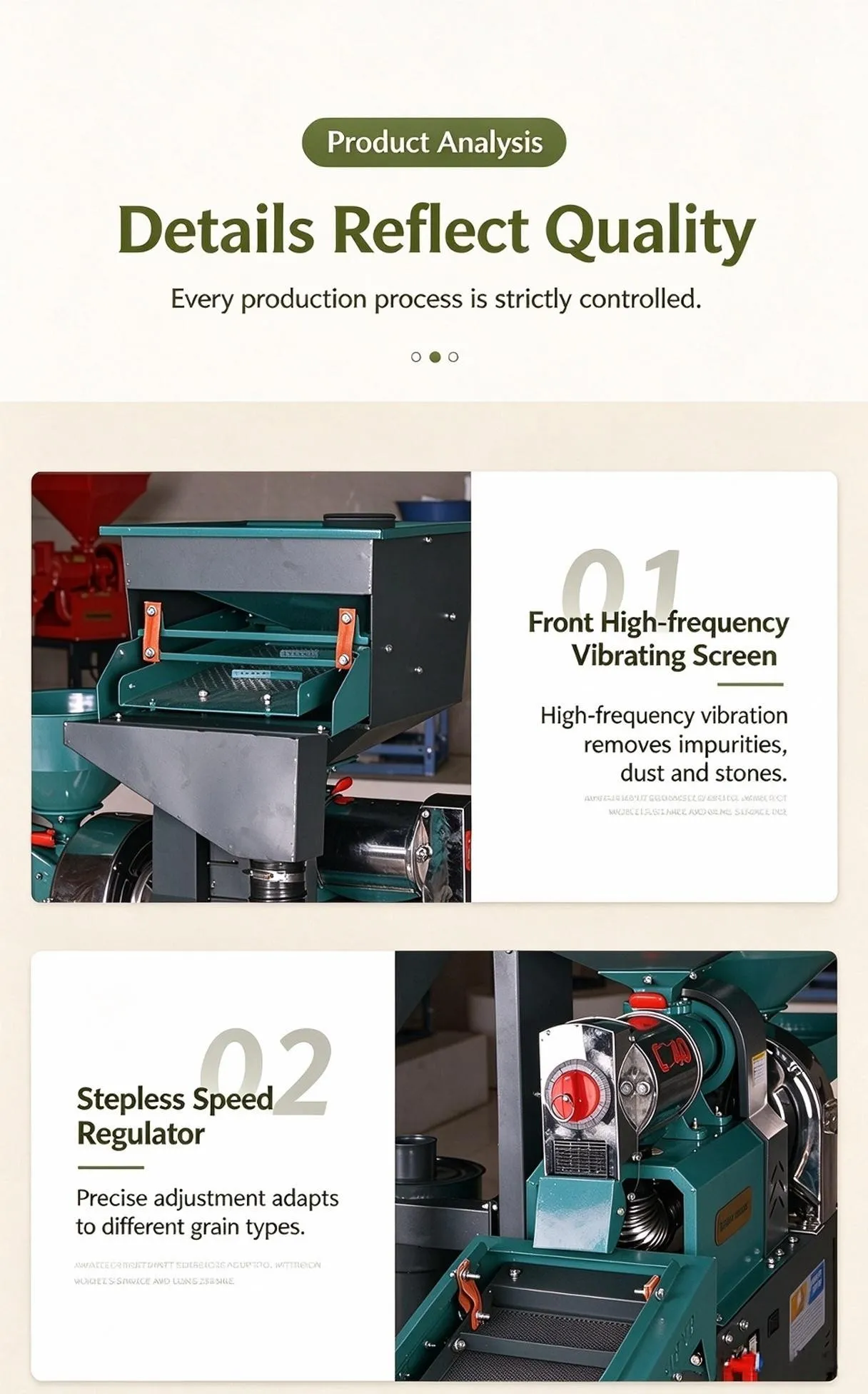

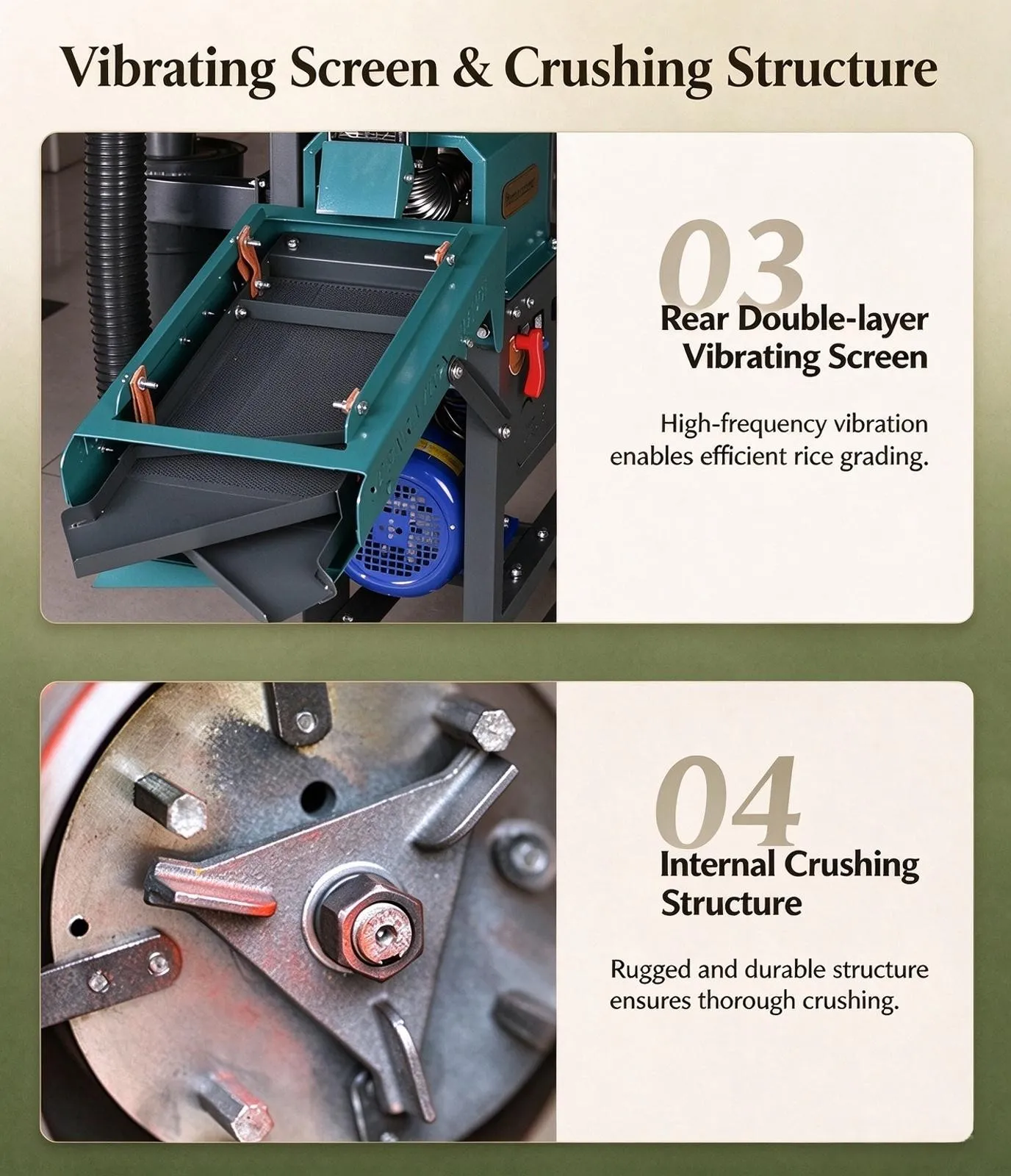

✅ Dual Vibration Screening System (Core Advantage) • Equipped with double vibrating screens. Efficiently separate whole rice, broken rice and rice bran in one pass. Cleaner finished rice and higher commercial value.
✅ 2-in-1 Multi-purpose Design • Integrated rice milling and grain crushing function. One machine can hull paddy into white rice, and also crush maize, millet, sorghum, beans into powder. Perfect for small farmers and rural grain processors in West Africa.
✅ Excellent Milling Quality • Low broken rice rate, high rice yield. The dual vibrating sieve improves grain separation effect greatly. Clean finished rice, good market value.
✅ Simple & User-friendly Operation • No complicated training required. Local workers can master operation quickly. Spare parts are easy to source and replace in Nigeria. Low maintenance cost.
✅ Strong & Durable Body • Heavy-duty steel frame, anti-wear roller. Long service life, adapt to long-time continuous work under harsh rural environment.
✅ Flexible Power Option • Single phase 220V / Three phase 380V motor optional. Match power condition in different villages and towns. Small footprint, convenient for transportation and installation.
✅ Wide Application • Ideal for household use, small rice mill workshop, village grain processing business. Very popular in Nigeria, Ghana, Niger and other West African countries.

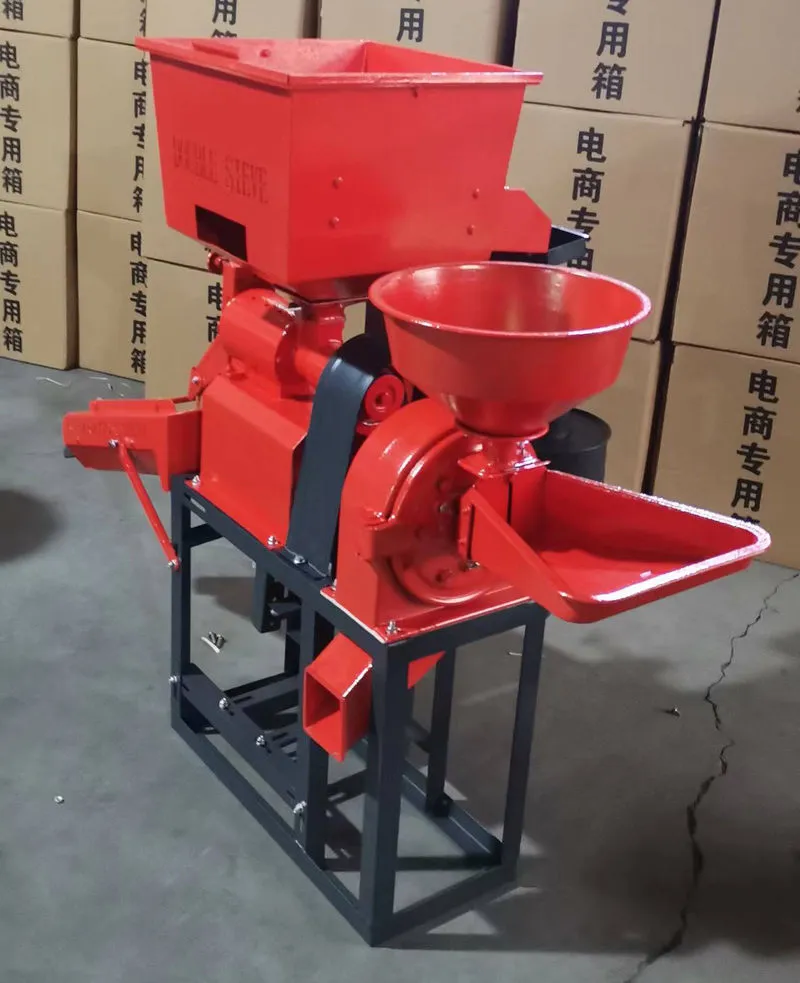

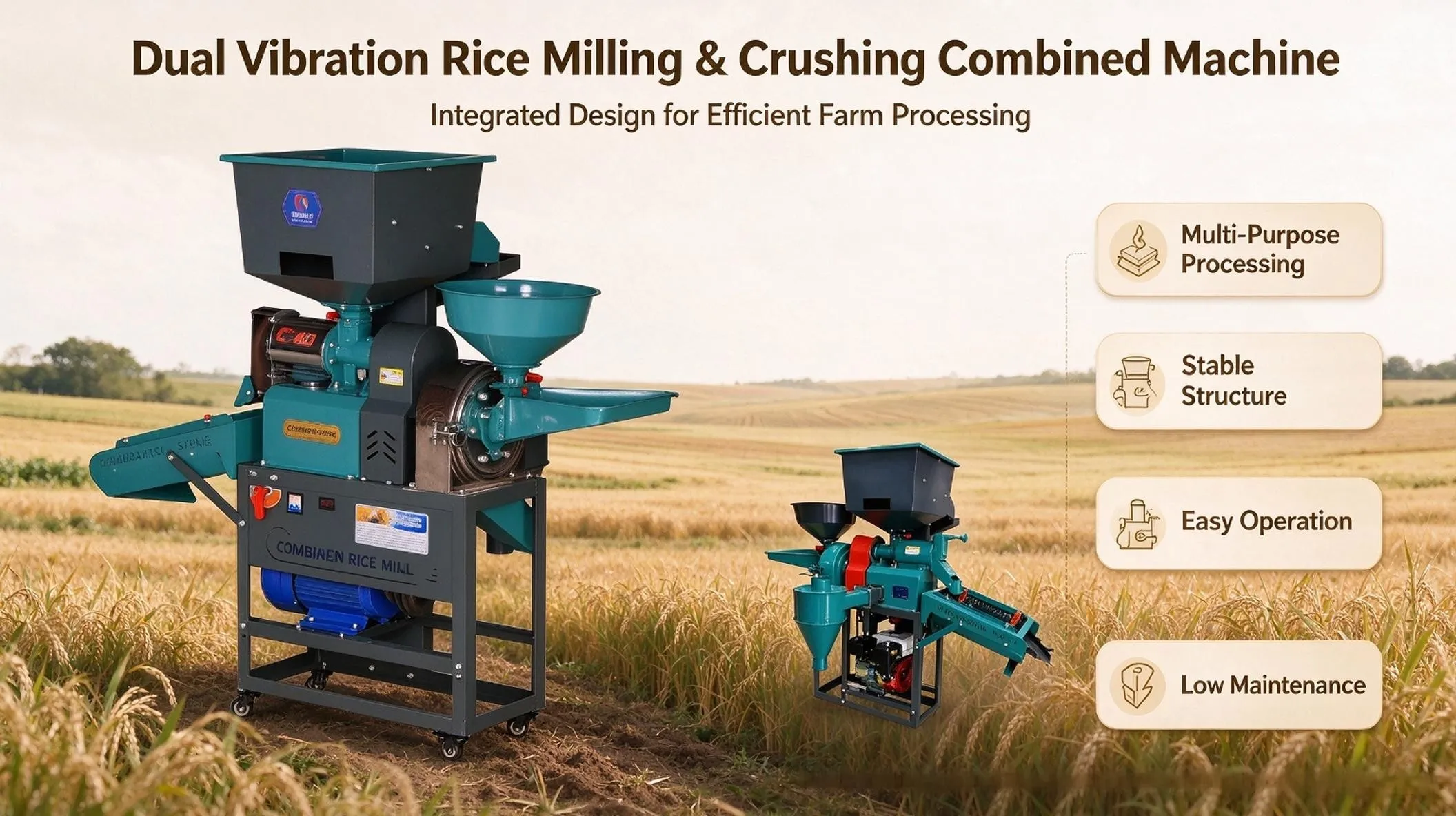

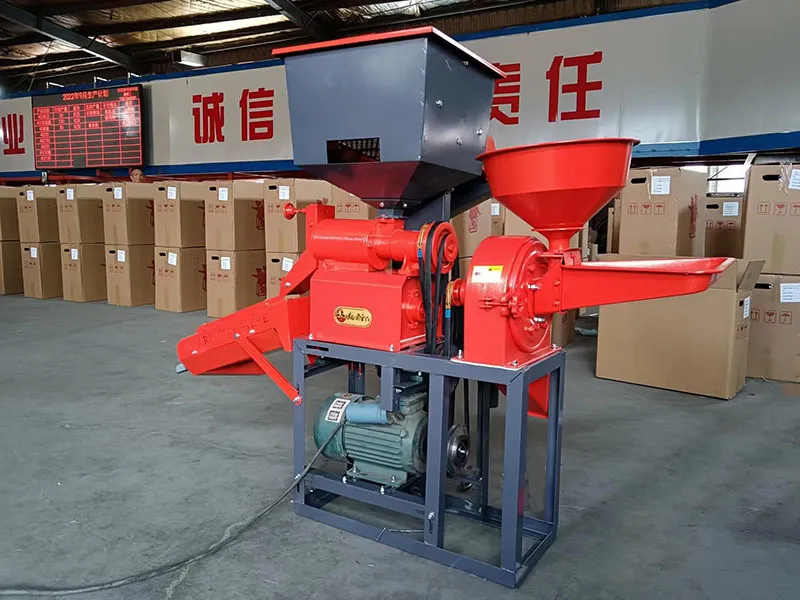

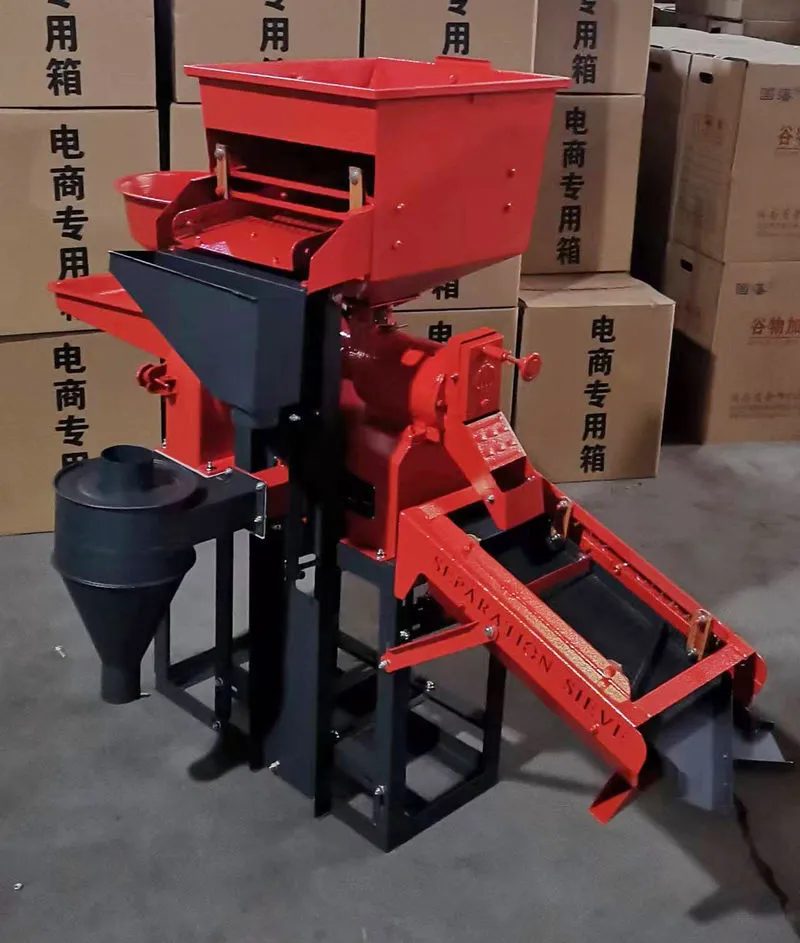

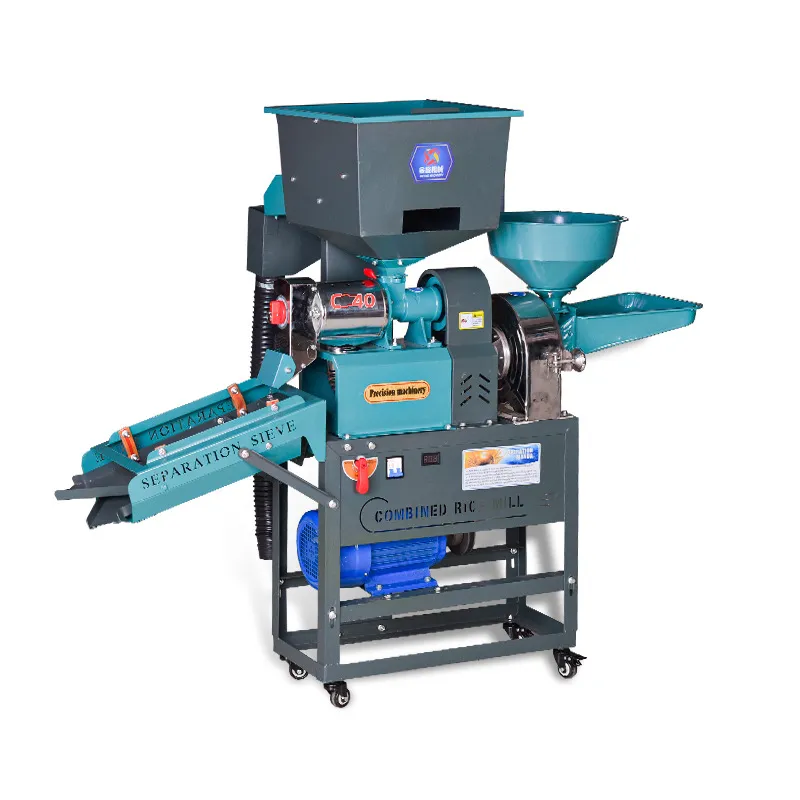

This 6NF-4 /9F-21 dual vibration combined rice mill & grinder integrates rice milling and grain pulverizing functions, specially developed for small grain processing, widely popular in West Africa market.
• When used for rice milling: It removes paddy husk and bran efficiently. Adopts dual vibration screening system to separate white rice, rice bran and broken rice automatically in one operation. You can get clean polished rice directly. Low broken rice rate and high finished rice output increase your profit.
• When used as a grinder: It can crush corn, sorghum, millet, beans and other dry grains into fine powder for animal feed or food processing.
The machine adopts solid steel structure, stable running and low noise. Operation is simple, only one person can operate it. Spare parts are standard and easy to get. We provide complete after-sales guidance for installation, operation and trouble shooting.
Power supply can be customized: single phase 220V or three phase 380V motor to meet different local power situations.
This machine is a best choice for farmers, village grain processors, small mill owners who want to start small grain business. We support bulk order and dealer distribution cooperation for Nigeria market.
| Name | Unit | Technical Specifications |
|---|---|---|
| Product Model（产品型号） | / | MJF-6NF-4/9F-21 |
| Spindle Speed（主轴转速） | r/min | Rice milling part:1650; Grinding part:5500 |
| Weight-Main Unit（整机质量） | kg | 76 (w/o motor，不含电机) |
| Package Size（包装尺寸） | mm | 680×315×535, 550×470×550, 625×345×225 |
| Overall Dimension（外形尺寸） | mm | 1300×370×1160 |
| Production Efficiency（生产效率） | kg/h | Rice milling part ≥160; Grinding part ≥150 |
| Name | Unit | Technical Specifications |
|---|---|---|
| Model（型号） | / | YL100L2-2 |
| Overall Dimension（外形尺寸） | mm | 410×230×260 |
| Power（功率） | kW | 2.2 |
| Revolving Speed（转速） | r/min | 2800 |
| Voltage（电压） | V | 220 |
| Electric Current（电流） | A | 12.9 |
| Weight（重量） | kg | 22.5 |
| Frequency（频率） | Hz | 50 |
• Factory direct supply, competitive price
• Support OEM & customized motor
• Operation manual & operation video provided
• Oversea dealer distribution support for Nigeria
• Online technical support
