Home / PRODUCTS / MJF-6NF-4-9F-21 A Cpmbined Rice Mill (Parallel Model)
MJF-6NF-4-9F-21 A Cpmbined Rice Mill (Parallel Model)

2-in-1 integrated machine, combines rice milling and crushing functions in one unit, saves workshop space and reduces procurement cost.

  1. 1. Wide application range: can husk rice & millet; crush corn, wheat, soybean, dried chili, spices, herbal medicine and animal feed.

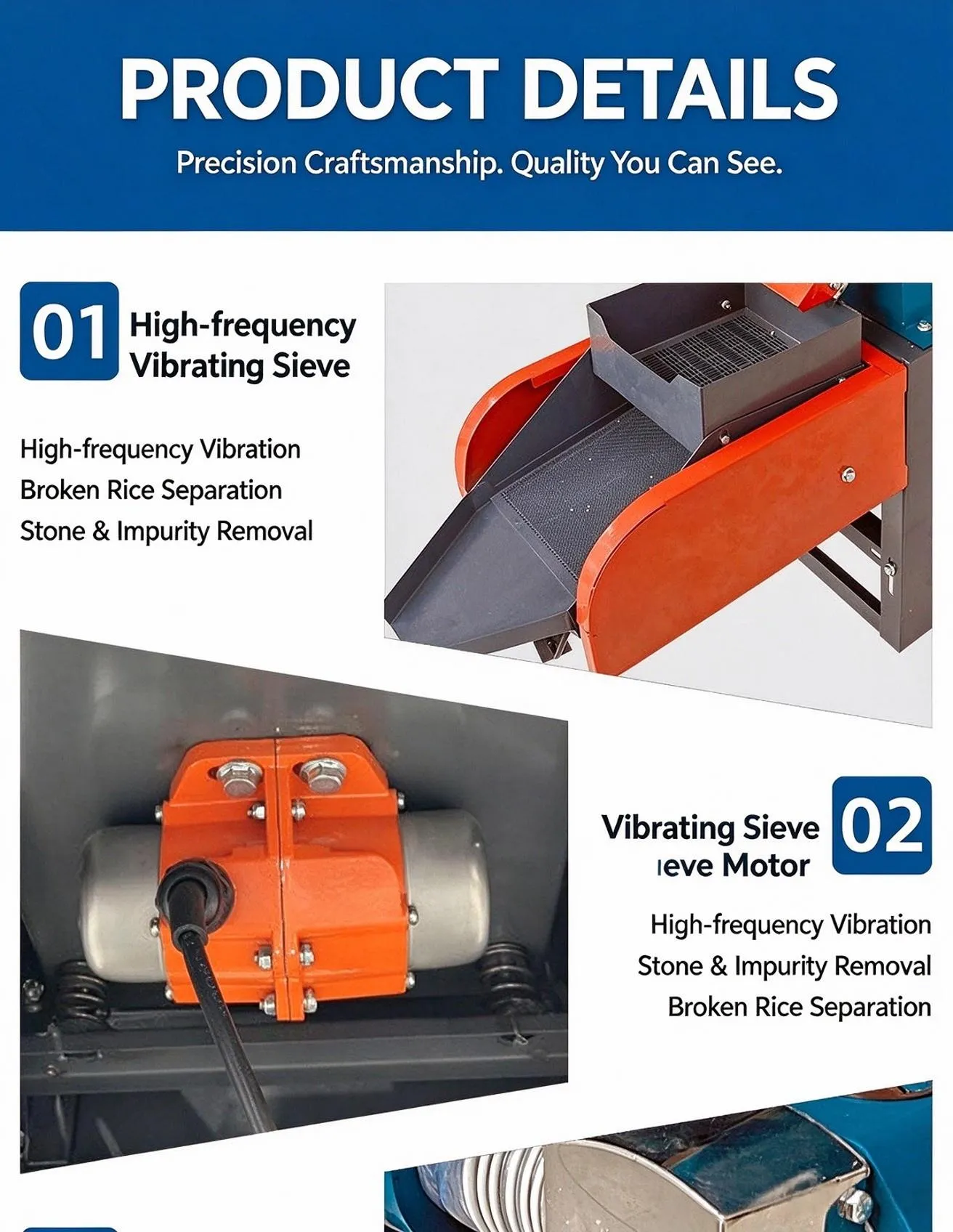

  2. 2. Equipped with high-frequency electric vibrating sieve, realizes broken rice separation, stone and impurity removal automatically, improves finished rice quality.

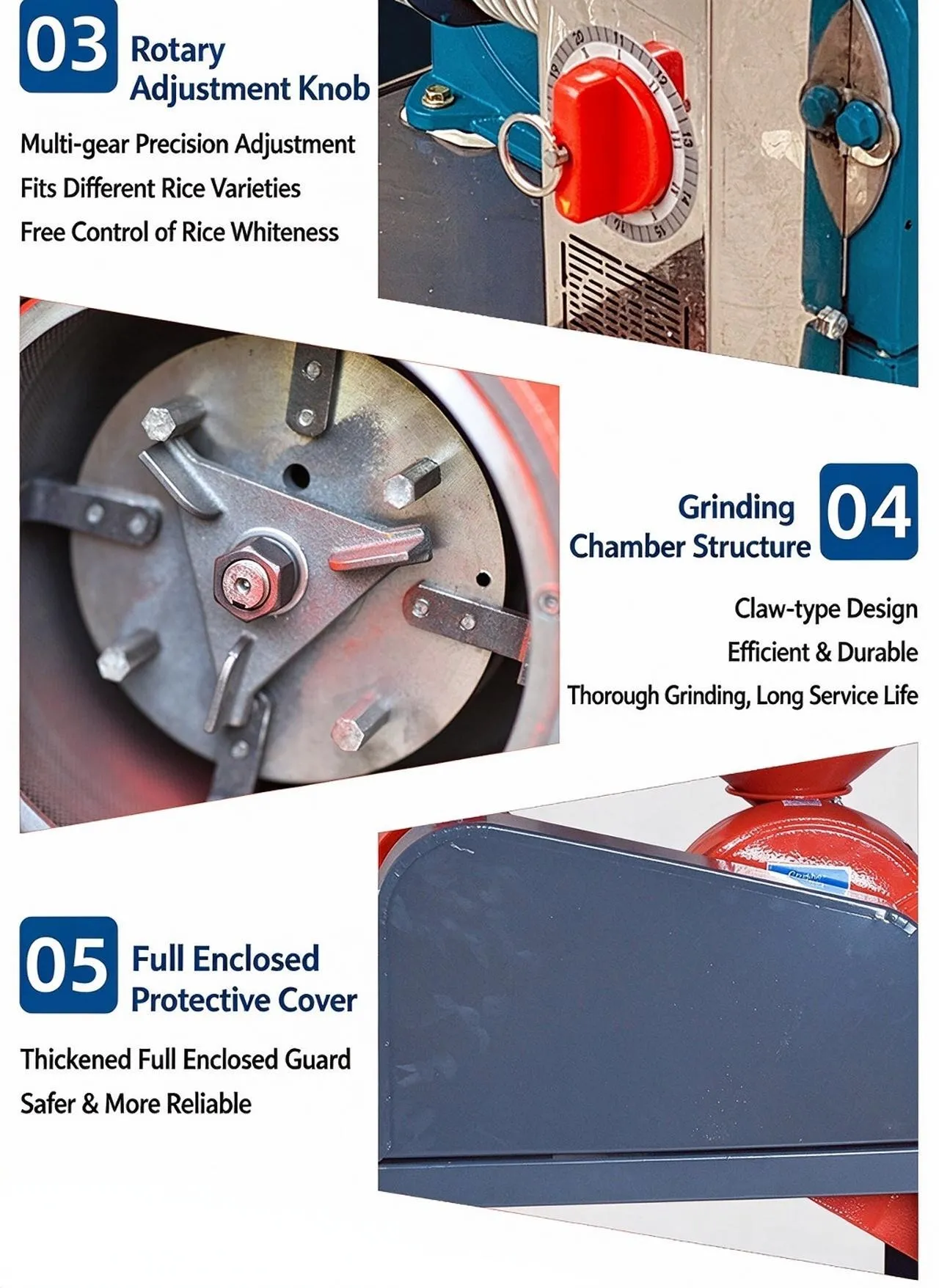

  3. 3. Rotary adjustable gear knob, freely adjust rice whiteness to fit different paddy varieties.
  4. 4. Claw-type crushing internal structure, high efficiency, thorough grinding, wear-resistant and long service life.
  5. 5. Thick fully-enclosed protective cover for operation safety; solid heavy-duty material, stable running with low noise.
  6. 6. Built-in moving handle and universal casters, one person can move the machine easily, flexible for different working sites.
  7. 7. Simple operation and easy maintenance, ideal for family farms, small rice processing workshops.


# Main Technical Parameters
Productivity: Rice milling ≥160 kg/h, Grinding ≥150 kg/h
Spindle speed: Rice milling part 1650 r/min, Grinding part 5500 r/min
Matching power: Model YL100L2-2, 2.2 kW, 2800 r/min
Applicable standards: JB/T9792-2013 Separated rice mill; JB/T9822-2018 Hammer mill for feed



## Full parameters from the table
Product model: 6NF-4/9F-21
Spindle speed: Rice milling part 1650 r/min, Grinding part 5500 r/min
Weight-main unit: 46 kg (w/o motor)
Package size: 595×455×470 mm
Overall dimension: 1370×400×1150 mm
Production efficiency: Rice milling part ≥160 kg/h, Grinding part ≥150 kg/h



### Motor
Model: YL100L2-2
Overall dimension: 410×230×260 mm
Power: 2.2 kW
Revolving speed: 2800 r/min
Voltage: 220 V
Current: 12.9 A
Weight: 22.5 kg
Frequency: 50 Hz

Applicable standards: JB/T9792-2013 Separated rice mill; JB/T9822-2018 Hammer mill for feed
