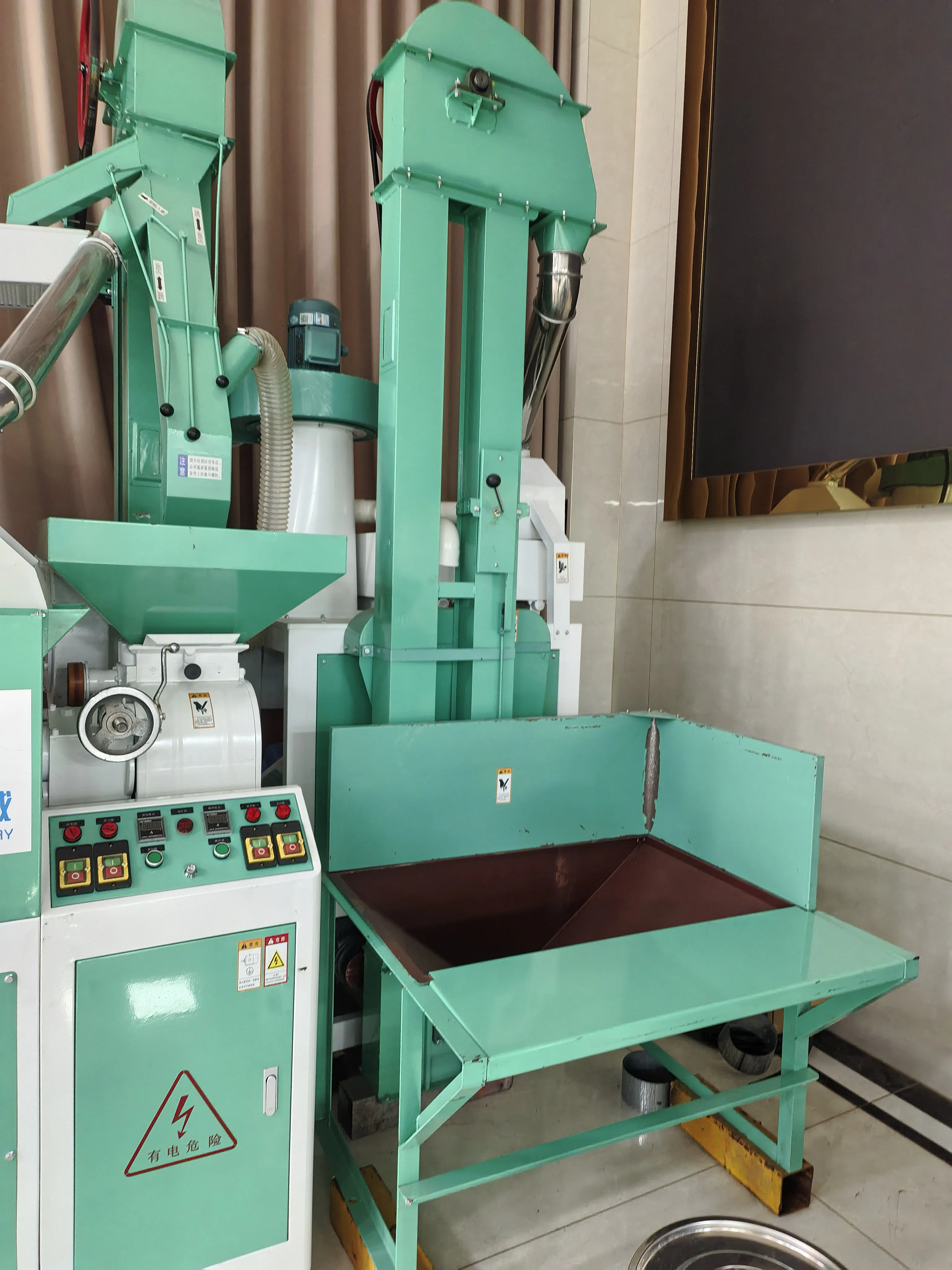

6LN-20/15Sa Rice Huller and Roller Combined Rice Machine is a new-generation high-efficiency integrated rice milling equipment suitable for medium and small grain processing factories.
Integrated Design: Combines stone removal, rice husking, brown and white rice separation, rice milling, broken rice sorting, and bran powder collection in one machine, saving workshop space and reducing equipment investment.
High Efficiency: Large hourly output of 1000-1200 kg/h, stable operation, and low failure rate, making it ideal for continuous production.
Dual Optional Models: Fine bran type and coarse bran type are available to meet different market and processing requirements.
Multi-Functional Processing: Applicable for both rice and millet processing, outputting finished rice, millet, finer rice bran, and coarse rice bran.
| Main Technical Parameters | |||
|---|---|---|---|

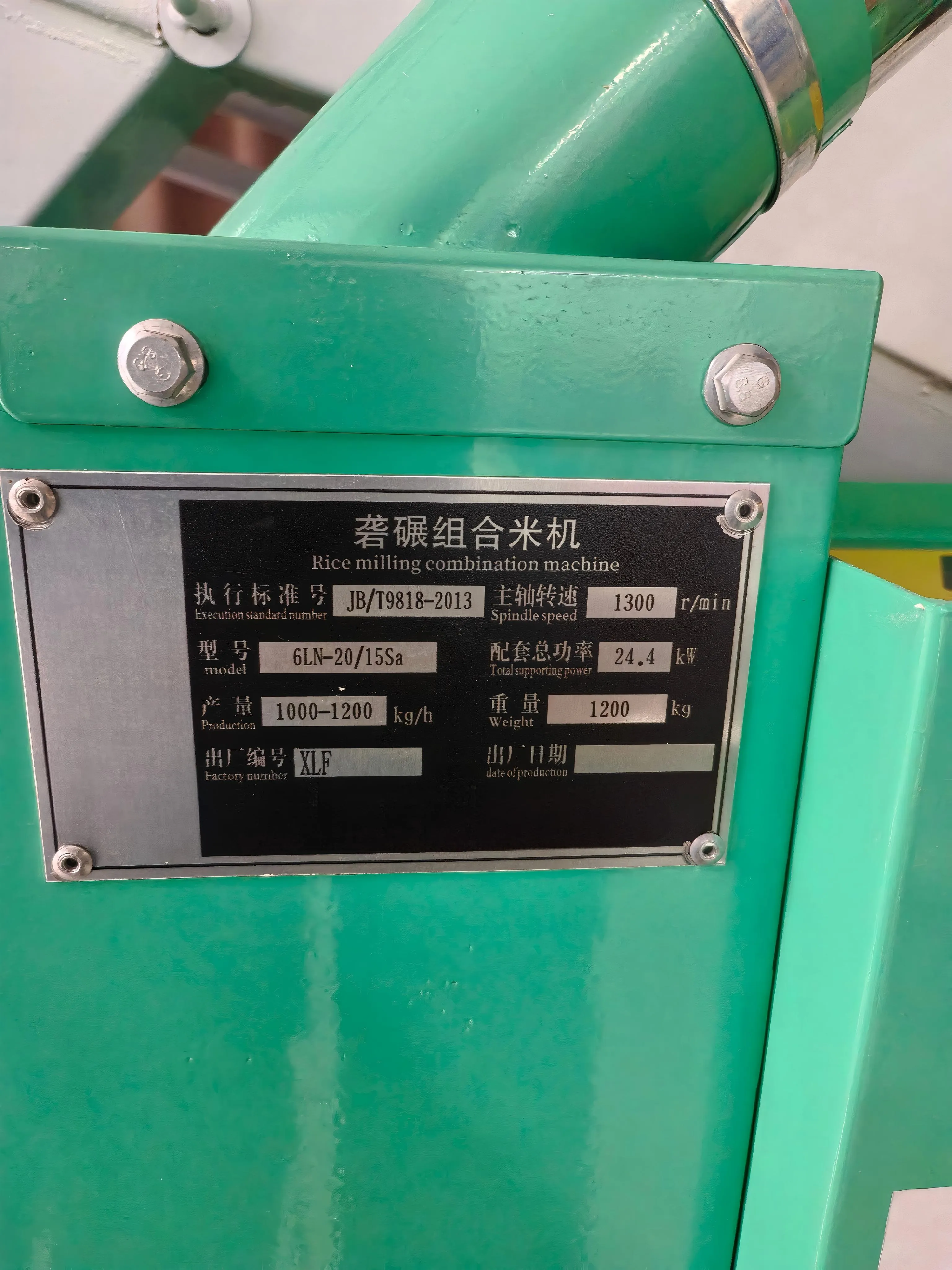

| Model | 6LN-20/15Sa | Production Capacity | 1000-1200 kg/h |
| Matching Power | 24.4 kW | Spindle Speed | 1300 r/min |
| Whole Machine Weight | 1200 kg | Packing Dimension | 3700×3400×2960 mm |
| Matching Motor Configuration & Detailed Motor Parameters | |||
|---|---|---|---|
| Husking & Milling Main Motor | 18.5kW (or 22kW) / 15kW for coarse bran type | Self-equipped Stone Removal Fan Motor | 0.75kW or 1.1kW 2-pole motor |
| Stone Remover Motor | 0.75kW | Double-lift Elevator Motor | 0.75kW |
| Brown Rice Separation Sieve Motor | 0.75kW | Self-equipped Broken Rice Sorting Motor | 0.37kW |
| Auxiliary Motors | 3 sets of 0.75kW motors | ||
Integrated Design: Combines stone removing, husking, separation, milling and bran collection in one machine, saving workshop space and reducing equipment investment.
High Efficiency: Large hourly output, stable operation, suitable for medium and small grain processing factories.
Dual Optional Models: Fine bran and coarse bran types optional, flexible to meet different market and processing requirements.
Stable Performance: Reasonable structural design, low failure rate, easy operation and maintenance.
Working Principle: The machine processes paddy through a multi-stage system: stone removal, husking, brown and white rice separation, rice milling, broken rice sorting, and finally bran powder collection. It efficiently separates finished rice, millet, and different grades of rice bran.
